Single Girder Top Running Crane Carriage Alternative Motor High Performance

Product Categories
Chongqing Shanyan Crane Machinery Co., Ltd.
Contact Now

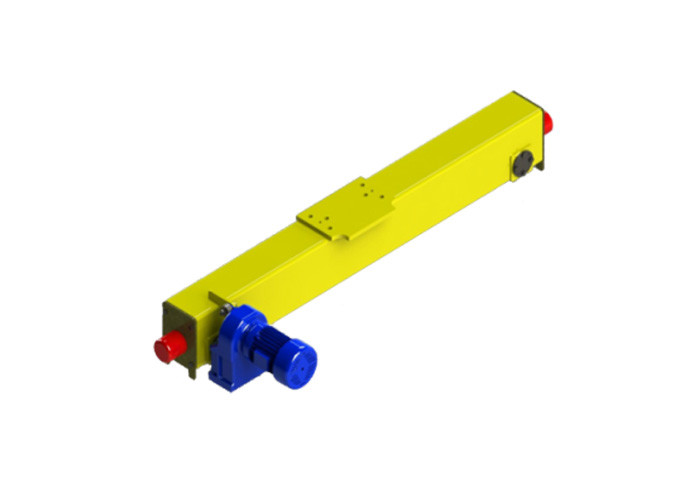

Single Girder Top Running Crane Carriage Alternative Motor High Performance

  • 1
  • 2

Brand Name : JCYC

Model Number : JCYC-EUS

Certification : CE & ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 to 200 sets per week

Delivery Time : 15 to 20 days

Packaging Details : Plywood Case

Motor Power : Alternative

Voltage : 220V to 440V

Wheel Size : Alternative

Span : 1.8cm to 40cm

Material : Steel

Condition : Brand New

Contact Now

Single Girder Top Running Crane Carriage Alternative Motor High Performance

SPECIFICATION:

Lifting speed: single speed, double speed, frequency controlled speed

Pendant control or remote control

Working duty: ISO:M3/M4/M5/M6

FEM:1Bm/1Am/2m/3m

Working Temperature: -25 to 50 degrees

Power Supply: 220-600V, 50/60Hz

DESCRIPTION:

Single Girder Top Running Crane Carriage Alternative Motor High Performance

Single Girder Top Running Crane Carriage Alternative Motor High Performance

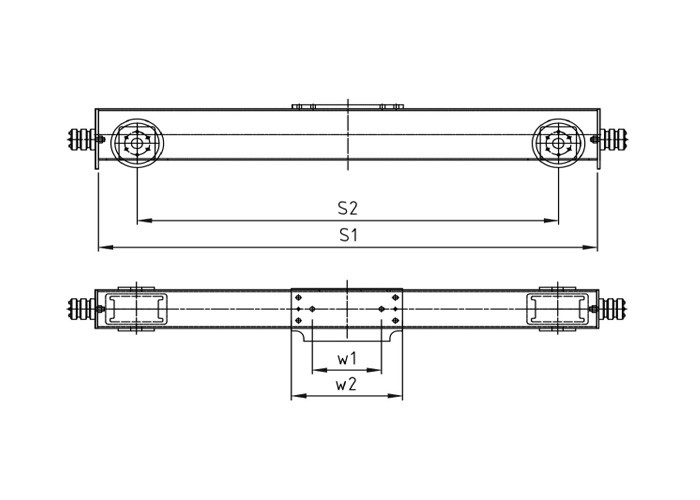

Model Crane Rectangular
Steel tube		 Wheel size Motor power
(20m/min)		 Motor power
(30m/min)		 S1
(mm)		 S2
(mm)		 W1
(mm)		 W2
(mm)
EUS90-15 1.6t-7.5m 150*150*6 U90*60 FA27-0.25KW FA27-0.37KW 1500 1300 400 550
EUS90-20 1.6t-11.5m 2000 1800 400 550
EUS90-25 1.6t-16.5m 2500 2300 400 550
EUS90-30 1.6t-22.5m 3000 2800 400 550
EUS125-15 3.2t-7.5m 150*200*8 U125*60 FA27-0.37KW FA27-0.55KW 1500 1300 400 550
EUS125-20 3.2t-11.5m 2000 1800 400 550
EUS125-25 3.2t-16.5m 2500 2300 400 550
EUS125-30 3.2t-22.5m 3000 2800 500 650
EUS125-35 3.2t-28.5m 3500 3300 600 750
EUS160-15 6.3t-7.5m 150*250*8 U160*70 FA37-0.55KW FA37-0.75KW 1500 1200 400 550
EUS160-20 6.3t-11.5m 2000 1700 400 550
EUS160-25 6.3t-16.5m 2500 2200 400 550
EUS160-30 6.3t-22.5m 3000 2700 500 650
EUS160-35 6.3t-28.5m 3500 3200 600 750
EUS200-20 12.5t-11.5m 200*250*8 U200*70 FA47-0.75KW FA47-1.1KW 2000 1700 500 650
EUS200-25 12.5t-16.5m 2500 2200 500 650
EUS200-30 12.5t-22.5m FA47-1.1KW 3000 2700 600 750
EUS200-35 12.5t-28.5m 3500 3200 700 850
EUS250-20 16t/20t-11.5m 200*300*8 U250*80 FA57-1.1KW FA57-1.5KW 2000 1600 500 650
EUS250-25 16t/20t-16.5m 2500 2100 600 750
EUS250-30 16t/20t-22.5m FA57-1.5KW 3000 2600 700 850
EUS250-35 16t/20t-28.5m 3500 3100 700 850

PLEASE FEEL FREE TO CONTACT US WITH ANY INQUIRY.
